Fishfinder track mount designed for track mounting systems including the RAM® Tough-Track™ and other third party track systems. Includes 1.5" diameter C size RAM® Track-Ball™, medium length C size socket arm, and 6.25" x 2" adapter plate for fishfinders and GPS chartplotters; RAM® Mounts ball and socket technology allows for near-infinite adjustability. Backed by a lifetime warranty.
OVERVIEW

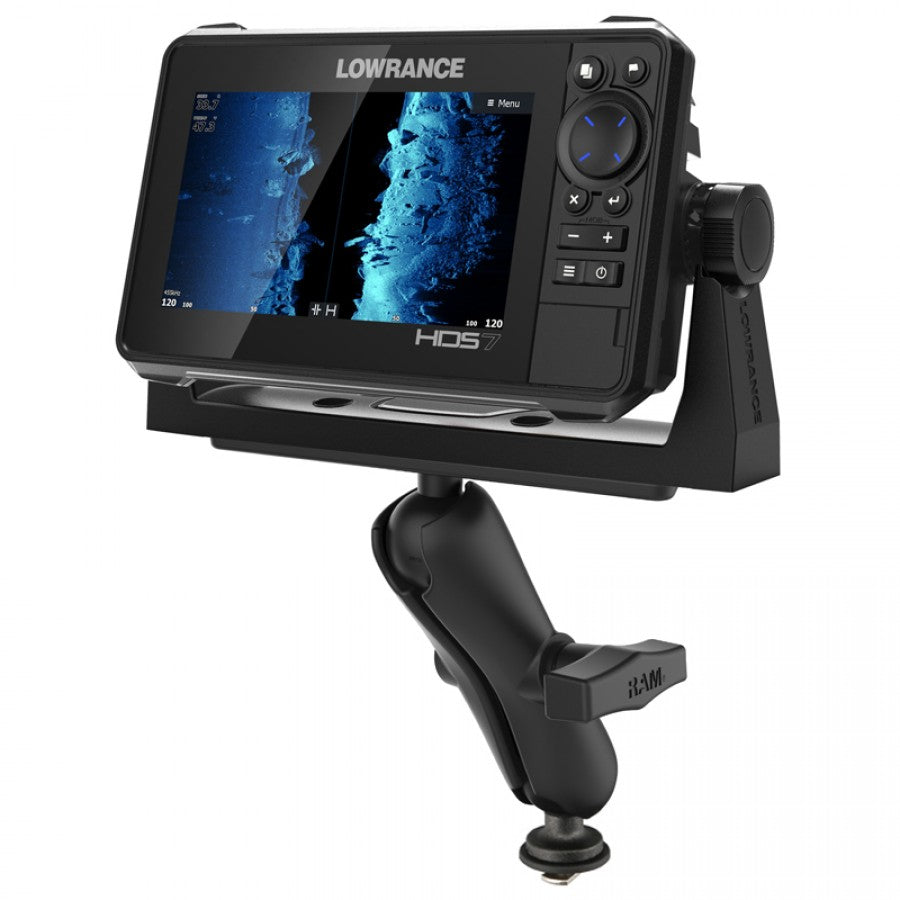

The RAM-111B-354-TRA1U consists of a Track Ball™ base that can attach to any track system including the RAM Tough-Track™. Connected to the base is a standard length double socket arm and 6.25" x 2" rectangle plate for supporting a wide range of fishfinders and chartplotters. The rectangular plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
RAM® Track-Ball® compatible with most integrated kayak tracks
Adapter plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fishfinders and GPS chartplotters
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
PRODUCT DIMENSIONS
Overall Height: 7.5"
T-BOLT DIMENSIONS
.48" x .95"
SOCKET-TO-SOCKET LENGTH
4.66"
PLATE SIZE
6.25" x 2"
BALL SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminium
High strength composite
WEIGHT
0.5kg
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
