ATMOS 12V Airstation

ATMOS 12V Airstation


Regular price £499.00
Regular price Sale price £499.00
Sale Sold out
VAT included. Shipping calculated at checkout.

If product delivery is longer than expected, we will contact you with a new ETA.

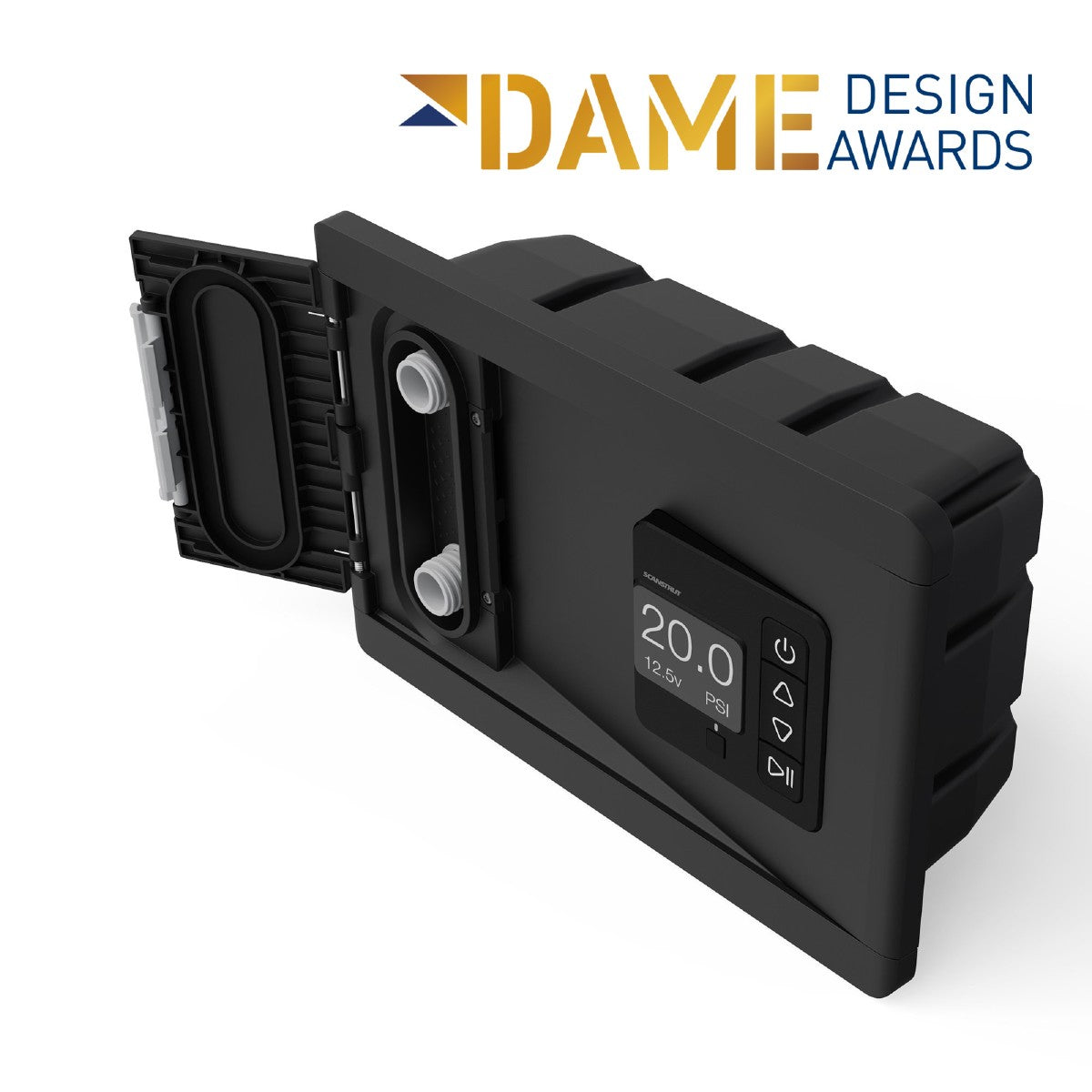

Multiple Award-winning ATMOS 12V Brushless Integrated Airstation

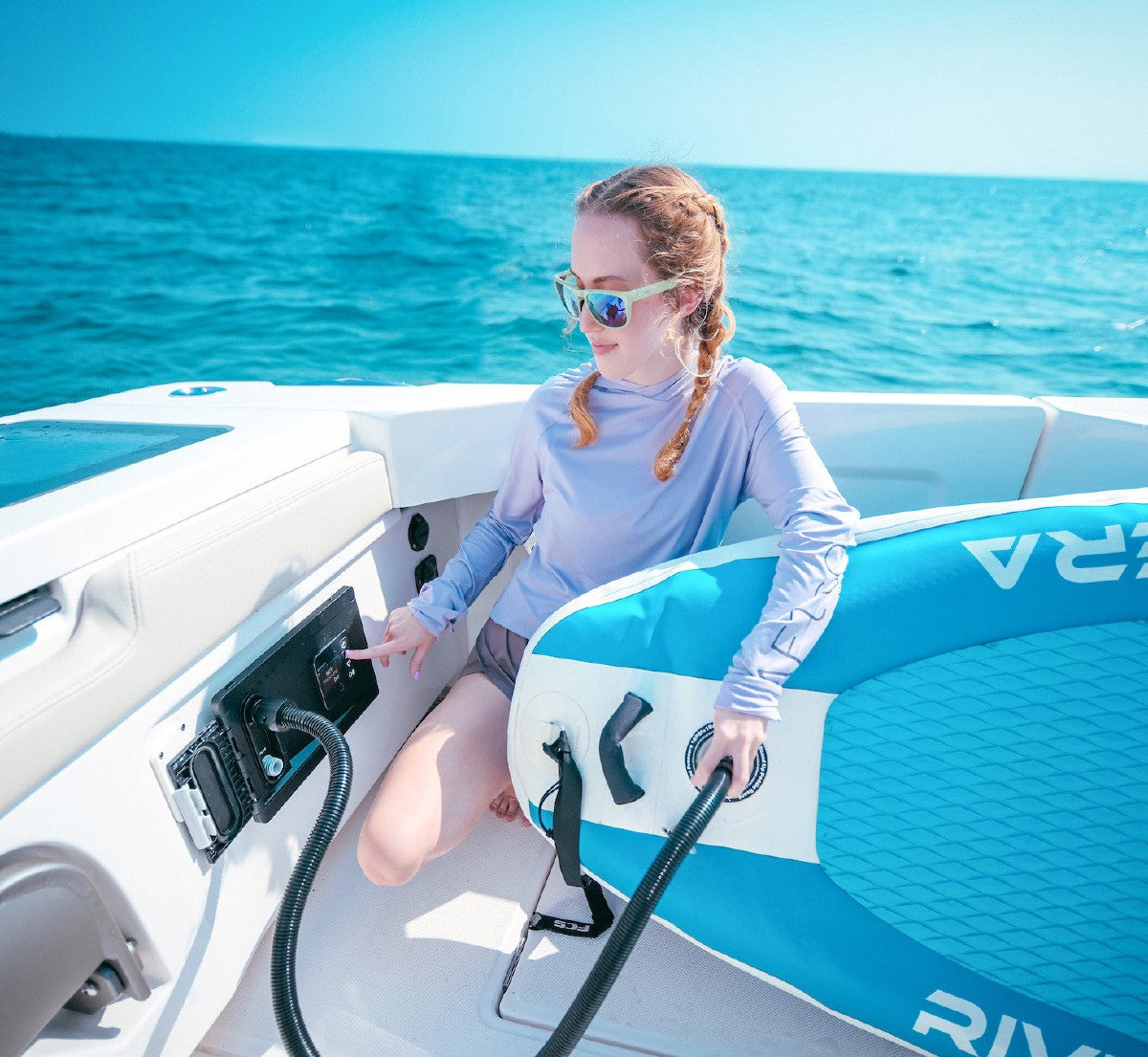

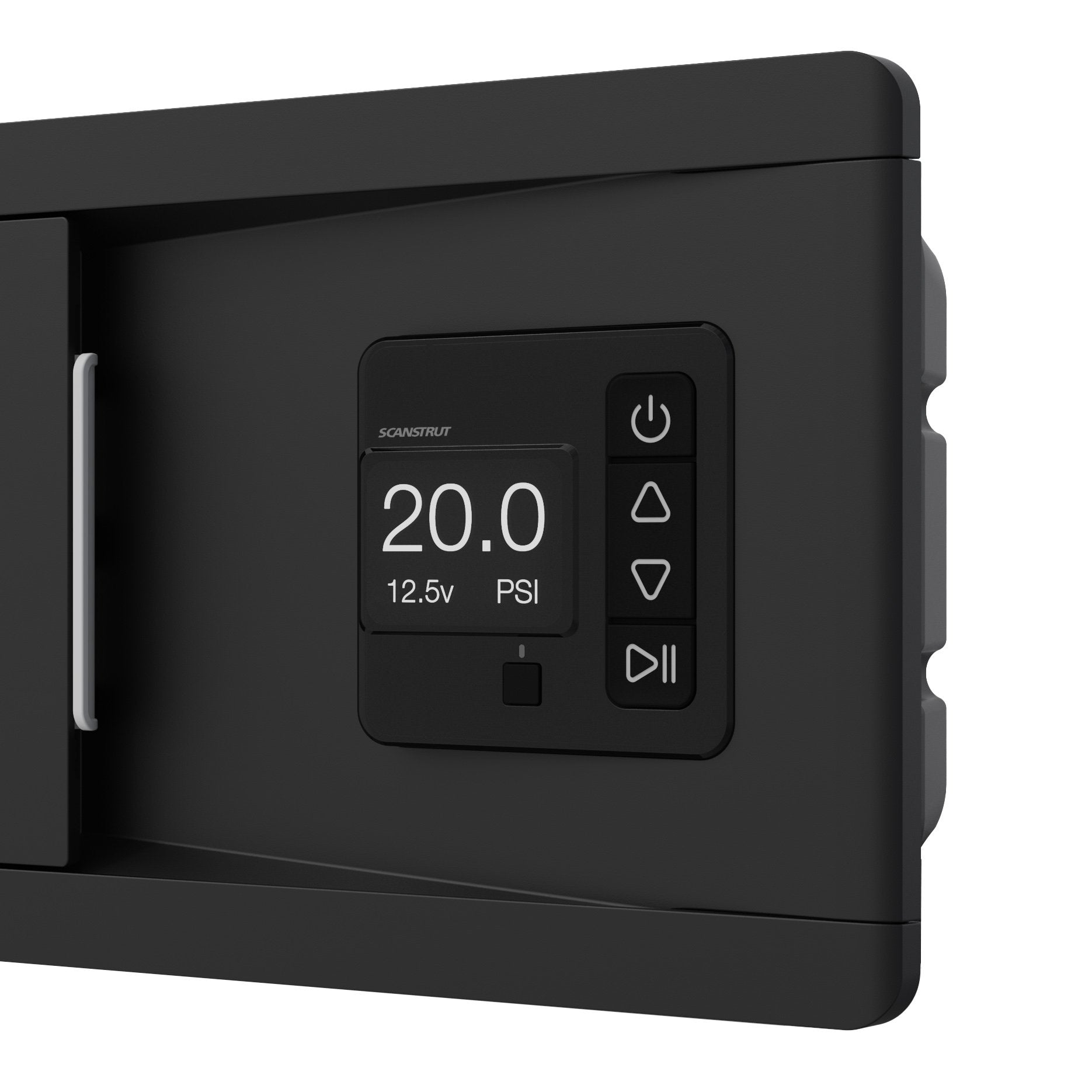

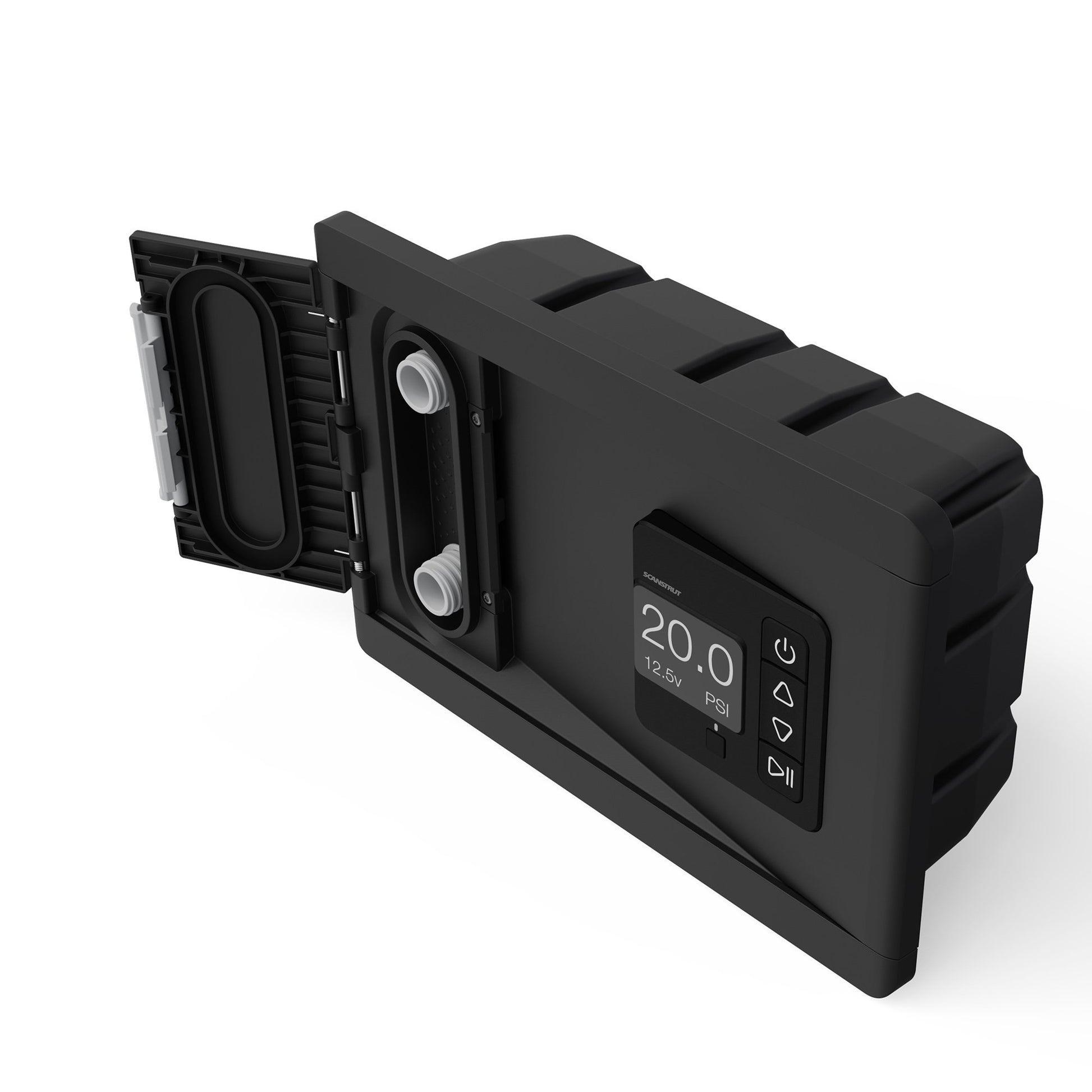

ATMOS, by Scanstrut, will revolutionise your family’s boating experience. This beautifully designed, in-built air station is here to maximise quality time on the water. At the push of a button, ATMOS is ready to inflate your paddleboards, towables and more: simply set the target pressure and let ATMOS do all the hard work. Features high performance brushless motors designed for the marine environment. Panel mounted using self-tapping screws or bolts (not included), foam gasket included. Fit into a wide variety of locations on board: seating, side panels or consoles. Min cavity depth 110mm (4.33”).

"Scanstrut’s latest product, the ATMOS 12V Integrated Airstation, is making waves by addressing a common woe faced by boaters and water enthusiasts. The product managed to achieve almost legendary status at IBEX and METSTRADE, picking up both the Innovation Award and DAME Award". (IBEX 365)

Utilising Scanstrut’s outdoor technology DNA, this is waterproof on-board air that’s engineered to thrive in the harsh marine environment. Spend less time wrestling with inflatables and more time on the water!

Certifications: CE, ROHS, UN ECE R10, UKCA

Ignition Protection: ISO 8846 and SAE J1171. ATMOS can be safely installed in any location on a boat or vehicle

Waterproof rating: IPX6 front and rear (door closed)

Protection: Reverse polarity, short-circuit, under voltage, overload, over temp

Cable length: 500mm (20”) 1.5mm2 16 AWG

Click here for technical drawings, installation info and inflation/deflation times.

Part Number SC-AOB-A2
Ambient operating temp -20º to +50 ºC
Input voltage 12V Battery system (11.5 – 14V)
Max current draw 12A (140W)
Max pressure 20 PSI / 1.37 BAR
Max volume of airflow 0-1 PSI 350 LPM/12.3 CFM
Max volume of airflow 1-20 PSI 70 LPM/2.5 CFM
Standby power draw 0.02W Max
Two stage pump: Stage 1 = 0 - 1 PSI Stage 2 = 1.1 - 20 PSI
