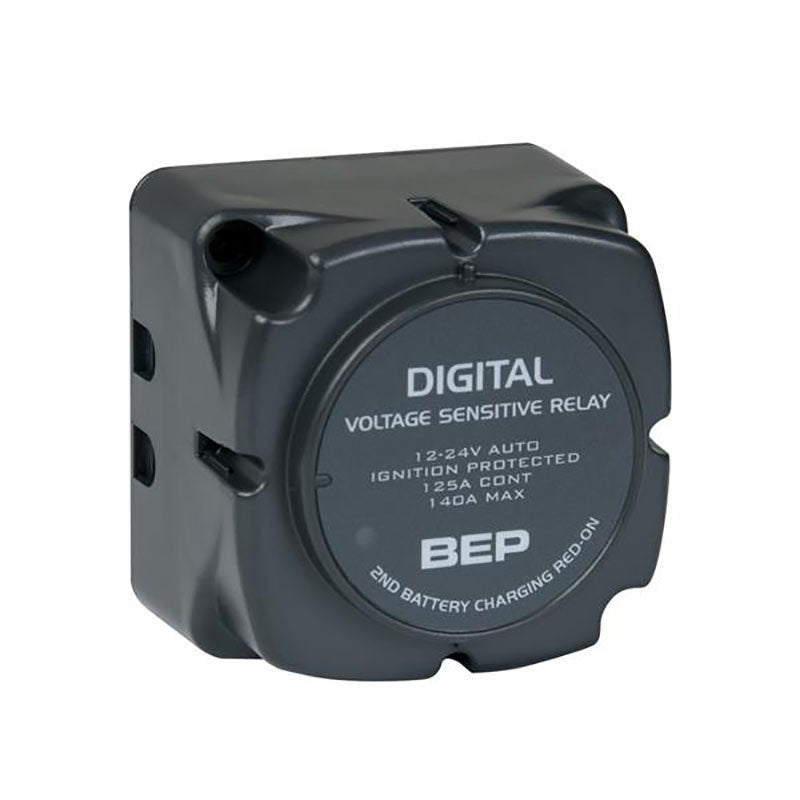

BEP Digital Voltage Sensitive Relay (DVSR) 12/24V

BEP Digital Voltage Sensitive Relay (DVSR) 12/24V

The digital voltage sensing relay (DVSR) allows the charging of a second battery bank from any single charging source.

Safely charge two or more independent battery banks from one charge source such as an alternator or battery charger.

Ignition protected: surface or panel mountable.

• Charges engine starting batteries before combining auxiliary bank for charging
• Protects start batteries from becoming flattened by domestic loads Isolates electronics from harmful electrical surges from starter motors
• Simple to install 3 wire connection leaves alternator wiring intact
• No volt drop vs diode isolators
• Replaces previous models 710-125A and 710-125A-DS
• Multi voltage, auto selects between 12 and 24V DC operation
• Digital circuits provide very low power consumption and enhanced performance
• Remote status LED output option
• Continuous rating: 140
• Engages: 13.2 VDC, Disengages: 12.7 VDC
