Jabsco
Ref: XYCW403
Couldn't load pickup availability
Next day delivery may be possible for this item: please call 01932 247 427.

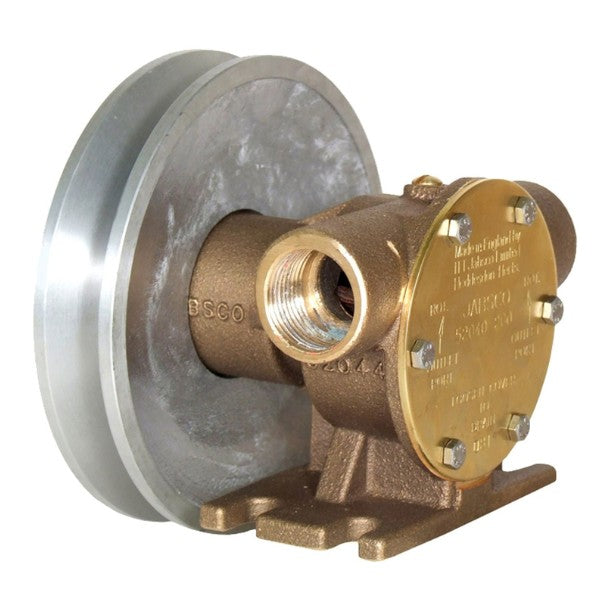

This Jabsco pump kit contains a pump with a pulley and is designed to offer a replacement for the Jabsco 6490-222 and 6490-252 pumps.
The pump mounting and pulley drive require no alteration, use the rear pair of bolt slots in the CW403 pump pedestal.
The Jabsco CW403 has a 127mm (5") diameter pulley for A or B section belt.
Output / Flow Rate Description: 40 LPM at 1500 RPM
Pulley Size: 127mm pulley for A or B section
Warranty: 1 Year
Drive Type Description: Pulley Driven
Impeller Fitted: JAB-1210-0001-P
Model: CW404
Mounting Description: Pedestal Mount
Replaces Jabsco 6490-253 & 6490-223 pumps
Inlet Outlet 3/4" BSP Female
SPECIAL ORDER - Contact us for lead time 01932 247 427
