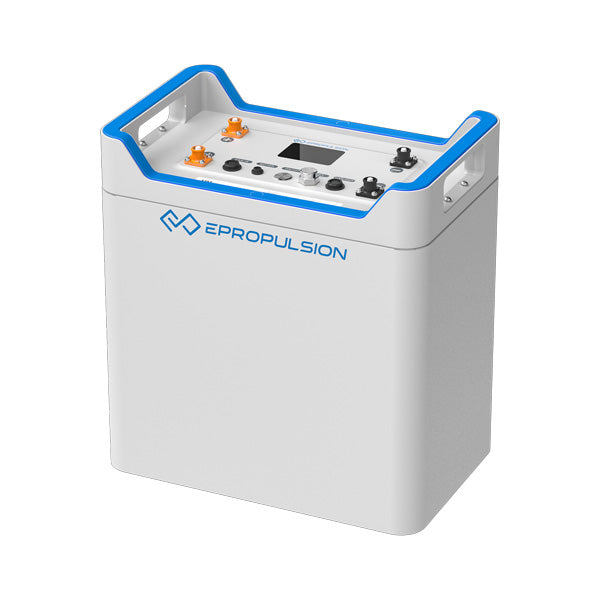

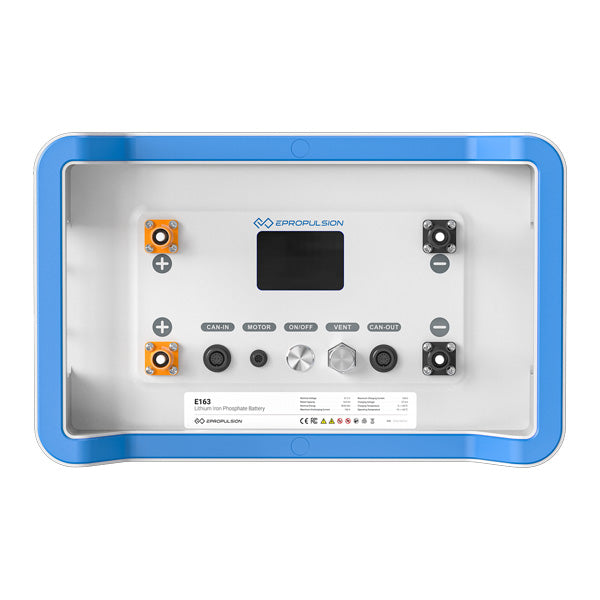

EPROPULSION E Series E163 Battery (LIFEPO4)

E Series Batteries offer an affordable lithium battery solution for ePropulsion electric outboard motors. The E163 battery can support the Navy Evo 6.0 Electric Outboard Motor and the POD Drive 6.0 Evo.

Benefits of E0163 LiFePO4 Batteries:

It has many advantages over other lithium-ion battery designs and older lead-acid (LA) batteries. They weigh less, they require zero maintenance, they have better charge and discharge characteristics and they have a much longer life, making them one of the best value electric propulsion solutions for boats.

Other key benefits of LiFePO4 include high current rating, longer cycle life, zero leak and fire risk and a tolerance to sub-optimal charging and discharging cycles.

Specifications:

• Capacity: 3072 Wh / 60 Ah
• Rated Voltage:51.2 V
• Battery Life:3,000 cycles at 80% DOD
• Weight: 76 kg
• Dimensions: 470 x 295 x 495 mm (18.5 x 11.6 x 19.5 in)
• Cut-off Voltage: 41.6 V
• Final Charging Voltage: 57.6 V
• Max Continuous Discharging Current: 150 A
• Serial Connection: N/A
• Parallel Connection: Up to 16
• Cell Configuration: 16S1P
• Charger: E-Series battery charger
• Charging Time (220V): One charger: 7.2 Hrs Two chargers in parallel: 3.6 Hrs
• Charging Time (110V): One charger: 11 Hrs Two chargers in parallel: 5.4 Hrs
• Charging Temperature: 0 to 55?? (32 to 131??F)
• Discharging Temperature: -10 to 60?? (14 to 140??F)
• Communication Available: CAN-Bus for Parallel RS485 for ePropulsion motors
• Shipping Classification: UN3480, Class 9, UN38.3 Certified
• Approvals: CE, UKCA, FCC
• Warranty: (Non-Commercial Use) 2 years
