Epropulsion

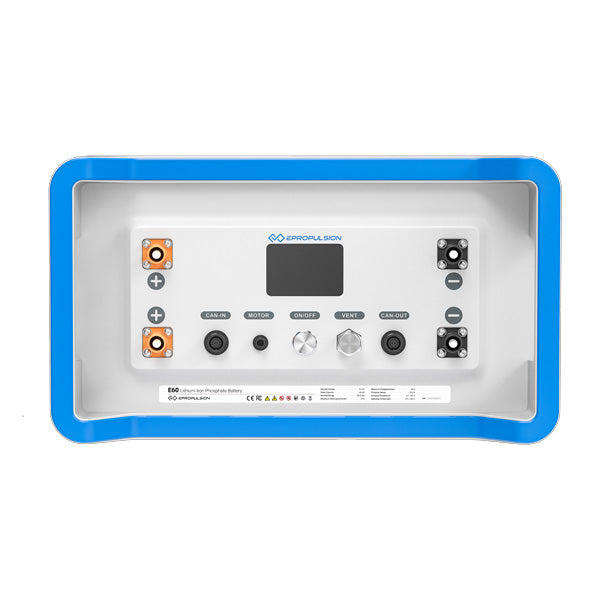

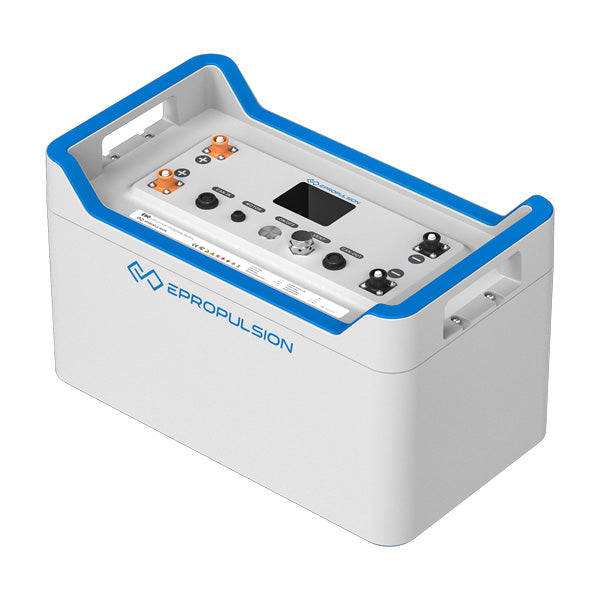

EPROPULSION E Series E60 Battery (LIFEPO4)

EPROPULSION E Series E60 Battery (LIFEPO4)

Ref: EPREB-0060-00

Regular price £1,800.00
Regular price Sale price £1,800.00
Sale Sold out
VAT included. Shipping calculated at checkout.

If product delivery is longer than expected, we will contact you with a new ETA.

E Series Batteries offer an affordable lithium battery solution for ePropulsion electric outboard motors. The E60 battery can support the Navy Evo 3.0 Electric Outboard Motor and the POD Drive 3.0 Evo.


Benefits of E60 LiFePO4 Batteries:

  • It has many advantages over other lithium-ion battery designs and older lead-acid (LA) batteries. They weigh less, they require zero maintenance, they have better charge and discharge characteristics and they have a much longer life, making them one of the best value electric propulsion solutions for boats.
  • Other key benefits of LiFePO4 include high current rating, longer cycle life, zero leak and fire risk and a tolerance to sub-optimal charging and discharging cycles

Specifications:

  • Capacity: 3072 Wh / 60 Ah
  • Rated Voltage:51.2 V
  • Battery Life:3,000 cycles at 80% DOD
  • Weight: 33 kg
  • Dimensions: 512 x 290 x 300 mm (20.2 x 11.4 x 11.8 in)
  • Cut-off Voltage: 41.6 V
  • Final Charging Voltage: 57.6 V
  • Max Continuous Discharging Current: 70 A
  • Serial Connection: N/A
  • Parallel Connection: Up to 16
  • Cell Configuration: 16S4P
  • Charger: E-Series battery charger
  • Charging Time (220V): One charger: 2.7 Hrs Two chargers in parallel: 1.3
  • Charging Time (110V): One charger: 4 Hrs Two chargers in parallel: 2 Hrs
  • Charging Temperature: 0 to 55?? (32 to 131??F)
  • Discharging Temperature: -10 to 60?? (14 to 140??F)
  • Communication Available: CAN-Bus for Parallel RS485 for ePropulsion motors
  • Shipping Classification: UN3480, Class 9, UN38.3 Certified
  • Approvals: CE, UKCA, FCC
  • Warranty: (Non-Commercial Use) 2 years

For more information, stock availability and fitting costs, please call us on 01932 247427 or email sales@pushtheboatout.com
