EPROPULSION i-20 Electric Inboard Motor Basic Package
EPROPULSION i-20 Electric Inboard Motor Basic Package
E Propulsion i-20 Electric Inboard Motor 20Kw has a highly integrated and modular ePropulsion Smart System Architecture (eSSA) and with IoT connectivity service, it provides users with an easy-to-use, intelligent, safe and reliable experience unlike any other. Suitable for sailboats, motorboats, commercial boats, workboats, and marine boats.
ePropulsion I-Series is an environmental-friendly electric inboard motor series packed with innovative technology, smart features and human operation design.The Built-in IoT (ePropulsion Connectivity) is industry-leading, allowing boat owners to access cloud-based connectivity services without adding additional accessories. Smart System Architecture (eSSA) features a complete fault diagnosis system, so it can detect equipment failures to automatically shield and protect the continuous operation of the boat.
Features:

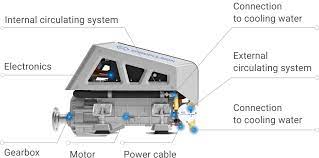

- Compact and Integrated: A compact design that integrates five functional modules of motor, gearbox, motor controller, system control unit and cooling system into a very small space.
- Space-saving: Take up 60% less space than typical combustion engines and greatly reduce the machine size*, providing installation flexibility and maximizing payload space for you.
- Lighter weight: 65% less weight than typical combustion engines and 30% lighter than electric inboard motors of similar range.*
- Easy to install: Internal wiring has been connected before delivery, providing you with an out-of-the-box experience.
- Easy to maintain: The technology and the design of the interfaces significantly lower the maintenance required than combustion engines.
Includes:
- 00-0603-09 - ESSA Communication 5-way T Connector
- 00-0603-01 - ESSA Communication 3-way T Connector
- 00-0603-10 - Essa Communication Terminator 1200
- 00-0603-11 - Essa Communication Terminator 3600
- 00-0603-07 - Essa Communication Extension cable 10m
- 00-0603-06 - Essa Communication Cable 1m
- 00-0603-12 - G Battery Output Cable Kit 10m (positive & negative)
- A1-M001-00 - Bus Box 250A
Technical Data:
- Input power: 20kW
- Input voltage: 86 to 115 VDC
- Weight: 49.5kg
- Dimensions: (L x W x H) 580 x 330 x 380 mm
- Cooling method: Water Cooling (Air cooling optional)
- Rated rotational speed: 1500 rpm
- Operation and interaction: Throttle & display (standard)
- Connectivity service: Support
Warranty: 5 years (Non-commercial use only)
For more information, stock availability and fitting costs, please call us on 01932 247427 or email sales@pushtheboatout.com
