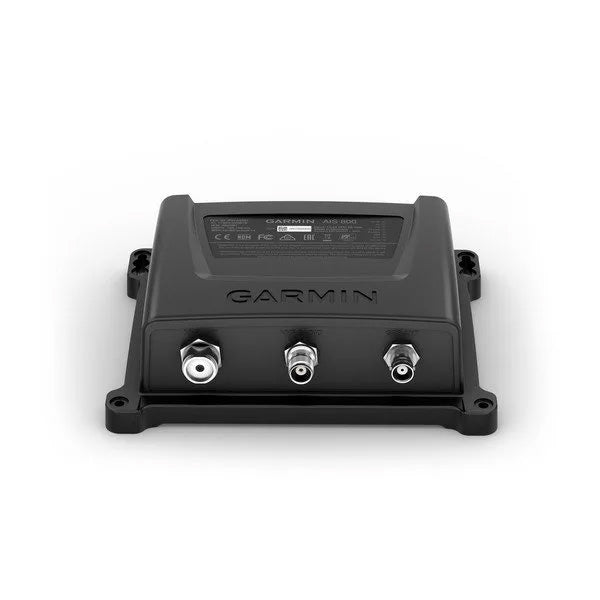

Garmin AIS 800 Blackbox Transceiver

Provides faster positioning reporting than ever before. Built-in GPS and NMEA 2000 connectivity for easy integration

Increase your situational awareness and confidence on the water with the Garmin AIS 800 transceiver, a best-selling product.

• Easy-to-use, reliable communication transmits your vessel information to other AIS receivers in your area while receiving AIS target data
• 5 watts of transmit power with Class B/SO provides faster positioning reporting than ever before (when cruising above 14 knots)
• Built-in GPS with connector for optional external antenna, and integrates seamlessly into the Garmin on-board system
• NMEA 2000 connectivity for easy integration with compatible chartplotters and multifunction displays
• Internal VHF antenna splitter allows VHF and AIS to share a single antenna

All packed into an easy-to-install black box unit with a small footprint.

Dimensions: 17.5 x 14.2 x 5.5 cm
Weight: 414 g
Operating temperature range: -15°C to 55°C
Waterproof rating: IPX7
Compass safe distance: 40 cm
Operating voltage: 9.6 - 31.2 Vdc
Current drain: 12Vdc: < 400 mA; 24Vdc: < 250 mA
Antenna connector: S0-239 (50 Ω)
GPS refresh rate: 1 Hz
Max antenna gain: 9 dB
Transmitter power: 5 W
NMEA 2000 LEN: 2

IN THE BOX:-
AIS 800
NMEA 2000 T-connector
NMEA 2000 drop cable (2 metres)
VHF antenna extension (1.2 metres)
USB adapter cable
Power cable
Mounting hardware
Documentation
