Ref: GM010-02551-01

Regular price £316.20
Regular price Sale price £316.20
Sale Sold out
VAT included. Shipping calculated at checkout.

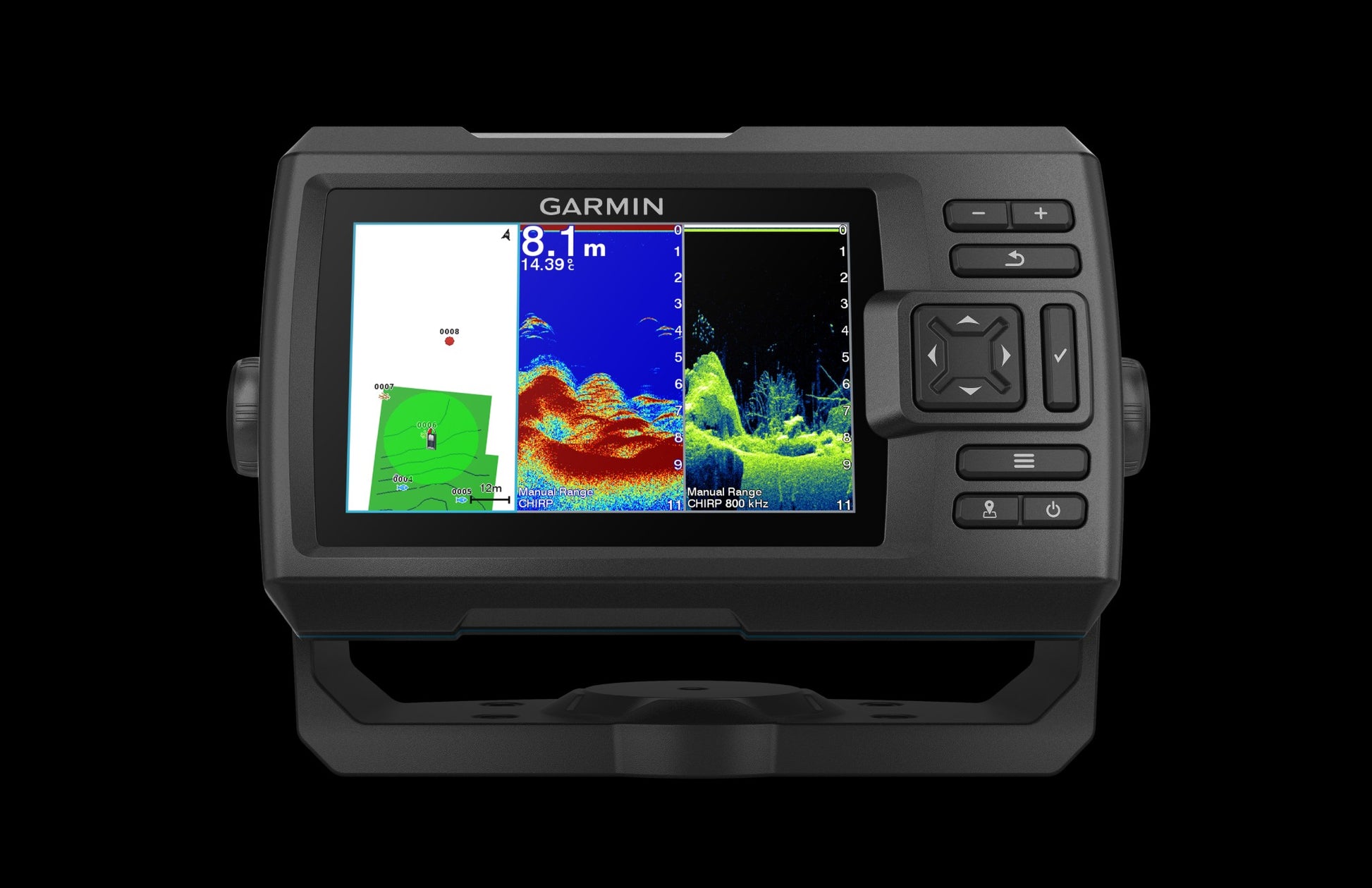

See fish and structure in maximum detail when you pick your display colour, your location and your sonar for your day on the water with the STRIKER Vivid 5cv fishfinder with transducer

Physical & Performance

Display Size: 2.6" x 4.3" (6.5 x 10.8 cm); 5.0" diag (12.8 cm)

Power Input: 12 to 20 Vdc

Display Resolution: 800 x 480 pixels

GPS: Yes

Dimension: 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm)

Waterproof: IPX7

Weight: 1.0 lb (0.5 kg)

Mounting Options: flush, tilt/swivel

Display Type: WVGA colour

Maps & Navigation

Waypoints/favourites/locations: 5000

Navigation Routes: 100


Transmit power: 500 W (RMS)

NMEA 0183 Compatible: No

Has built-in receiver:Yes

USB ports: No

AutoGain Technology (minimises clutter, maximises targets): Yes

SideVü: No

Additional: One 4-pin transducer port, Quickdraw Contours, Integrated GPS, Mark Waypoints, Course over Ground (COG), Current draw @ 12V: 0.40A

LakeVü g3 Ultra: No

Water temperature sensor included: Yes

NMEA 2000® compatible: No


Track points: 50,000

Panoptix™ sonar: No

A-scope (real time display of fish passing through transducer beam): Yes

Adjustable depth line (measures depth of underwater objects): Yes

LakeVü g3: No

Typical current draw: 0.40 A

Supports WAAS: Yes

Max current draw: 1.5 A

Built-in Auto Guidance: No

BlueChart g3: No

Standard Mapping: No

LakeVu (inland): No

Fish Symbol ID (helps identify fish targets): Yes

Displays sonar: Yes

Water Temperature Log: Yes

ANT+ (Connectivity): No

BNC external GPS antenna port: No

BlueChart g3 Vision: No

Garmin Wi-Fi network (local connection): No

Input Keyed Depth range shading; Yes

Garmin Quickdraw Contours Yes

Bluetooth® calling No

Split-screen zoom Yes

Raster chart support No

4-pin transducer ports 1

ClearVü: Yes

Tracks: 50

Galileo: No

LiveScope: No

Bottom Lock (shows return from the bottom up): Yes

Frequency Traditional: 50/77/200 kHz, CHIRP (mid and high), ClearVü: 260/455/800 kHz

Tide Tables: No

Power Consumption: 4.8

BlueChart (coastal): No

Traditional sonar (dual frequency/beam): Built-in
