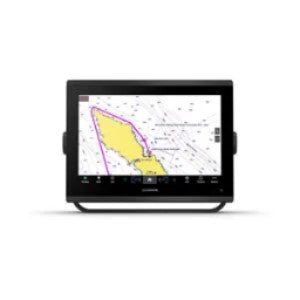

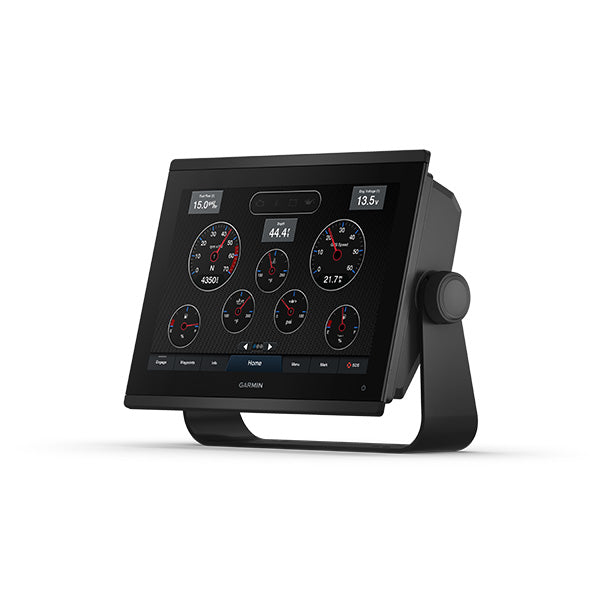

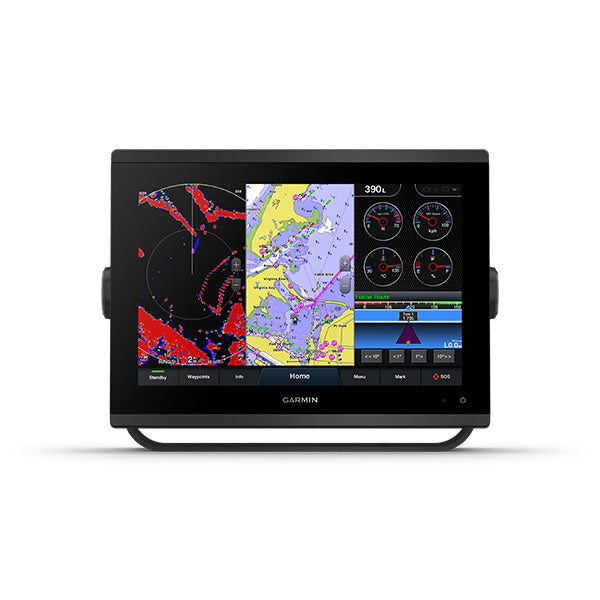

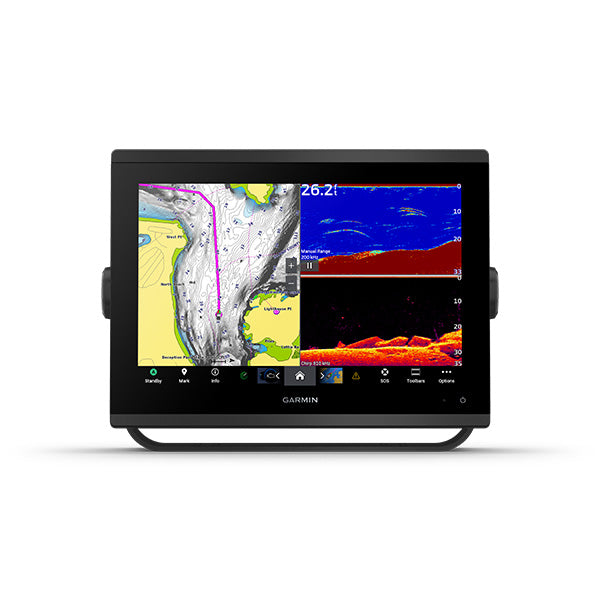

Garmin GPSMAP 1223 12" Chartplotter

GPSMAP 1223, Non-sonar with Worldwide Basemap

Easily integrate with more engines.
Connect to compatible third-party devices with OneHelm digital switching.
Easily build your marine system using the best of network connectivity.
Support for Garmin Navionics and premium Garmin Navionics Vision cartography.
See below your boat with built-in sonar capabilities.
Manage your marine experience from nearly anywhere.

Physical & Performance
Display Size                                                                          10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Power Input                                                                           10 to 32 Vdc
Display Resolution                                                                 1280 x 800 pixels
GPS                                                                                        Yes
Dimension                                                                              12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
Receiver                                                                                 10 Hz high-sensitivity
Waterproof                                                                               IPX7
Weight                                                                                     6.6 lbs. (3.0 kg)
Mounting Options                                                                    Bail or flush
Display Type                                                                            WXGA display

Maps & Navigation
Garmin Navionics Vision+                                                        Yes
Accepts Data Cards                                                                 2 microSD cards (back of unit)
Navigation Routes                                                                   100
Garmin Navionics+                                                                   Yes

Features
Waypoints                                                                                  5,000
Sailing features                                                                          Yes
NMEA 0183 Compatible                                                            Yes
Has built-in receiver                                                                   Yes
USB ports                                                                                   Yes
TOPO 100K                                                                                Yes
SideVü                                                                                        Yes (with GCV black box, sold separately)
DSC                                                                                            Yes
Touchscreen                                                                               Yes

Additional                                                                                    J1939 Connector
LakeVü g3 Ultra                                                                          Yes
NMEA 2000 compatible                                                              Yes
ActiveCaptain Mobile Planning Compatible                                Yes
Typical current draw at 12 Vdc                                                    1.67 A
NMEA 2000 ports                                                                         1
Tide tables                                                                                    Yes
GLONASS                                                                                    Yes
Track points                                                                                  50,000
Panoptix sonar                                                                              Yes

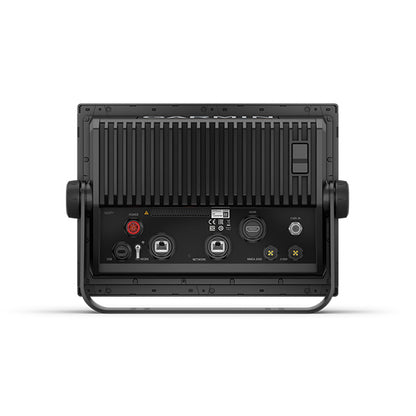

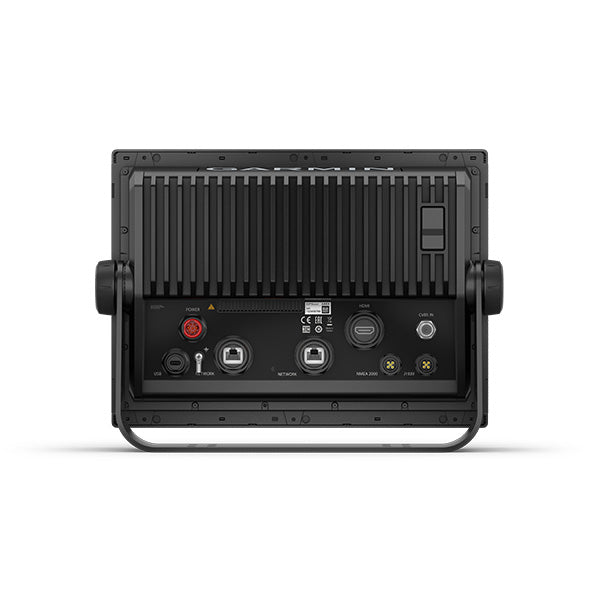

Garmin Marine Network Ports                                                       2
LakeVü g3                                                                                     Yes
Supports WAAS                                                                             Yes
GSD Black Box Sonar Support                                                      Yes
Maximum current draw at 12 Vdc                                                  2.159 A
Garmin SmartMode compatible (customisable monitor presets)   Yes
Built-in Auto Guidance                                                                    Yes
Maximum power usage at 10 Vdc                                                   26.5W
BlueChart g3                                                                                    Yes
Standard Mapping                                                                            Yes
LakeVu (inland)                                                                                 Yes
Displays sonar                                                                                  Yes
ANT+ (Connectivity)                                                                          Yes
GCV Black Box Sonar Support                                                         Yes
BNC external GPS antenna port                                                       No
Connections NMEA0183 Input Ports                                                 1
Spoken audio alerts                                                                          Yes
BlueChart g3 Vision                                                                          Yes
Garmin Wi-Fi network (local connection)                                          Yes
J1939 ports                                                                                       1
Input                                                                                                 Touchscreen
Garmin Quickdraw Contours                                                            Yes
Bluetooth calling                                                                               Yes
AIS                                                                                                    Yes
Video output ports                                                                            1 HDMI
Raster chart support                                                                         Yes
NMEA 0183 input (Tx) ports                                                             1
OneHelm support                                                                              Yes
ClearVü                                                                                              Yes (with GCV black box, sold separately)
Tracks                                                                                                50 saved tracks
Wireless Remote Compatible                                                            Yes
Supports Fusion-Link compatible radios                                            Yes
Galileo                                                                                                Yes
LiveScope                                                                                           Yes
BlueChart (coastal)                                                                             Yes
Traditional sonar (dual frequency/beam)                                            Yes (with GCV black box, sold separately)
GRID (Garmin Remote Input Device) compatible                               Yes
Video input ports                                                                                  1 BNC
