GPSMAP 1223xsv, With GMR 18 HD3 Radome

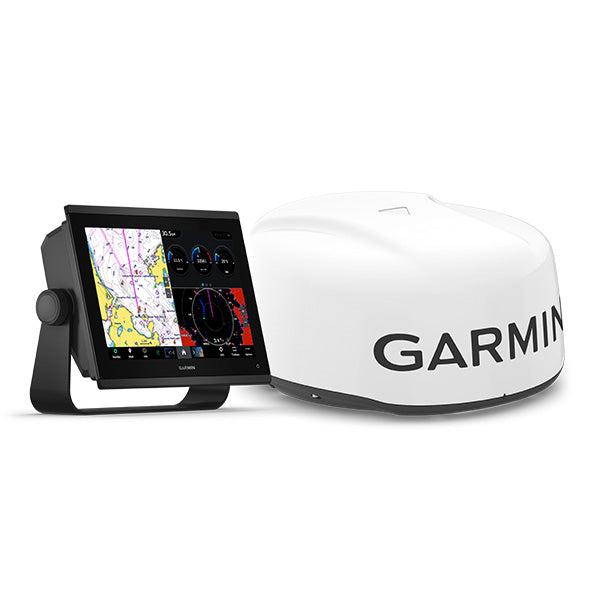

GPSMAP 1223xsv, With GMR 18 HD3 Radome

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP® X3 series also supports 1 kW CHIRP traditional sonar capabilities.
Built-in sonar compatibility only available on xsv models.

Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint,
it’s easy to retrofit this plotter in a wider range of dash configurations.

To help you avoid weather and traffic on the water, the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Now you can connect your chartplotter to different kinds of engines, including selected Yamaha engines.

Physical & Performance
Display Size
10.3" x 6.4"; 12.1" diagonal

(26.2 x 16.3 cm; 30.7 cm diagonal)

Power Input 10 to 32 Vdc
Display Resolution 1280 x 800 pixels
GPS Yes
Dimension 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
Receiver 10 Hz high-sensitivity
Waterproof IPX7
Weight 6.6 lbs. (3.0 kg)
Mounting Options Bail or flush
Display Type WXGA display
Maps & Navigation
Garmin Navionics Vision+ Yes
Accepts Data Cards 2 microSD cards (back of unit)
Navigation Routes 100
Garmin Navionics+ Yes
Features
Waypoints 5,000
Sailing features Yes
NMEA 0183 Compatible Yes
Has built-in receiver Yes
USB ports Yes
TOPO 100K Yes
SideVü Built-in 260/455/800/1000/1200 kHz
DSC Yes
Touchscreen Yes
LakeVü g3 Ultra Yes
NMEA 2000 compatible Yes
ActiveCaptain Mobile Planning Compatible
yes

Typical current draw at 12 Vdc 1.68 A
NMEA 2000 ports 1
Tide tables Yes
GLONASS Yes
Track points 50,000
Panoptix™ sonar Yes
Garmin Marine Network Ports 2
LakeVü g3 Yes
Supports WAAS Yes
GSD Black Box Sonar Support Yes
Maximum current draw at 12 Vdc 3.56 A
Garmin SmartMode compatible (customisable monitor presets) Yes
Built-in Auto Guidance Yes
Maximum power usage at 10 Vdc 43.0W
BlueChart g3 Yes
Standard Mapping Yes
LakeVu (inland) Yes
Displays sonar Yes
ANT+ (Connectivity) Yes
GCV Black Box Sonar Support Yes
BNC external GPS antenna port No
Connections NMEA0183 Input Ports 1
Spoken audio alerts Yes
BlueChart g3 Vision Yes
Garmin Wi-Fi network (local connection) Yes
J1939 ports 1
Input Touchscreen
Garmin Quickdraw Contours Yes
Bluetooth calling Yes
AIS Yes
Video output ports 1 HDMI
Raster chart support Yes
NMEA 0183 input (Tx) ports 1
OneHelm support Yes
ClearVü Built-in 260/455/800/1000/1200 kHz
Tracks 50 saved tracks
Wireless Remote Compatible Yes
Supports Fusion-Link compatible radios Yes
Galileo Yes
LiveScope Yes
Power output 1 kW
12-pin transducer ports 1
BlueChart (coastal) Yes
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
GRID (Garmin Remote Input Device) compatible Yes
Video input ports 1 BNC
