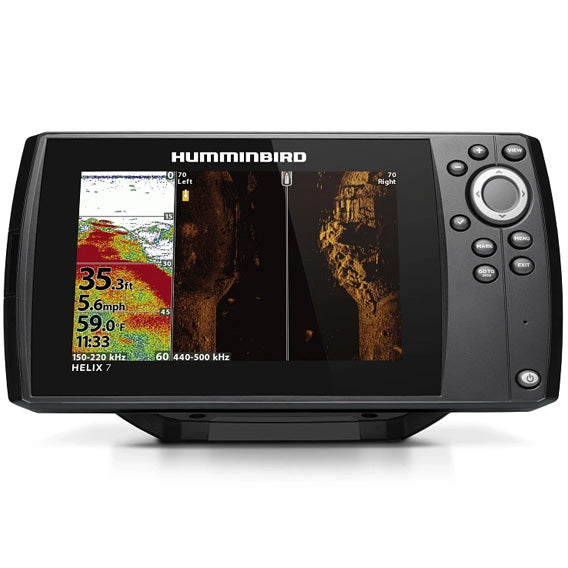

HUMMINBIRD HELIX 7 CHIRP SI GPS G4 Fish Finder

Never miss a fish - the HELIX 7 CHIRP SI GPS G4 fish finder features CHIRP Side Imaging, CHIRP Down Imaging, Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in.

Features

• Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
• CHIRP Side Imaging: Filter out noise and clutter for a clearer view of the world below and out to each side of your boat. CHIRP Digital Sonar processing of Side Imaging sonar means that you'll see fish and structure to the left and right of your boat, so you can spend less time searching and more time catching.
• CHIRP Down Imaging: Filter out noise and clutter for a clear view beneath your boat. CHIRP Digital Sonar processing of Down Imaging sonar means that you'll see great detail to make finding the fish simple and easy.
• Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
• Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
• Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts.
• AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
• Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.
• 1-Year Limited Warranty.

An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish.

Spec

Model: HELIX 7 CHIRP SI GPS G4

Product Code: 411590-1

Series: HELIX

UPC: 0082324056123

Display Size - Diagonal: 7 in

Display Pixel Matrix: 1024H x 600V

Transducer Included: XNT 9 HW SI T

Compatible With: Minn Kota US2 Sonar, AIS, AutoPilot

Features: Down Imaging, Built In GPS, Side Imaging, Dual Spectrum CHIRP, Built In Mapping

Memory Card Slot: Single Micro SD

Sonar-Standard: Dual Spectrum CHIRP, CHIRP Down Imaging, CHIRP Side Imaging

Sonar-Coverage: 20?, 42?, 60? & (2) 86? @ -10dB

Sonar-Optional: 50/83/200 kHz

CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz), Optional (28-250 kHz)

Sonar-Frequencies Supported: 50/83/200/455 kHz and HW DSC CHIRP

Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)

CHIRP - Imaging Frequencies Supported: 455 kHz (440-500 kHz)

Depth-Down Imaging: 400 ft (455 kHz)

Range-Side Imaging (Side-To-Side): 800 ft (455 kHz)

Interface: Keypad Control

Power Draw: 800 mA

Power Input :10.8-20 VDC

Power Output Peak-to-Peak: 4000 Watts

Power Output RMS: 500 Watts

Screen Snap Shot: Included

Sonar Recording :Included

Mount-Standard: Gimbal

Mount-Standard Size: 10.54 in W x 5.8 in H x 3.68 in D

Mount-Optional: In-Dash Mounting Kit

Mount-Optional Size: 10.54 in W x 5.44 in H x 1.13 in D

Transducer Mount Location: Transom

GPS Chartplotting: Included

GPS Receiver: Internal

GPS Trackplotting: Included

Waypoints, Routes, Tracks/Points: 2,750, 47, 50/20,000

360 Imaging Compatibility: No

MEGA Live Compatibility: No

Humminbird Basemap: Included

LakeMaster Compatibility: Yes

CoastMaster Compatibility: Yes

Navionics Gold/HotMaps Compatibility: Yes

Navionics Platinum+ Compatibility: Yes

Platinum Compatibility: Yes

Minn Kota i-Pilot Link Compatibility: No

Minn Kota Talon Shallow Water Anchor Compatibility: No

Radar Compatibility: No

5-Port Ethernet Switch Compatibility: No

AIS Compatibility: Optional

Autopilot Compatibility: Yes

Heading Sensor GPS Compatibility: Yes

NMEA2000: Not Supported

Target Separation: 2.5 in

Upgradable Software: Yes

View Preset Keys: No

X-Press Menu System: Yes

Custom Digital Readout: Yes

Custom View Selections: No

Display Colors Grayscale: 16-Bit

Display Type: Color TFT

Speed: Included

Temperature: Built In

Temperature Alarm: Yes

Temperature Graph: Yes

HDMI Compatible: No

Warranty: One-Year Warranty
