JABSCO Neoprene Spline Drive Pump Impeller (8 Blade, 65mm OD x 51mm)

Jabsco Neoprene Spline Drive Pump Impeller (8 Blade, 65mm OD x 51mm)

This Jabsco Impeller is suitable for the following Pumps:

21140-2401, 21140-2601, 23010-0131, 23430-1641, 29600-1641, 29600-1741, 29630-1001, 29630-1101, 29630-1141, 29630-1201, 29630-1241, 50440-1401, 50540-1001.

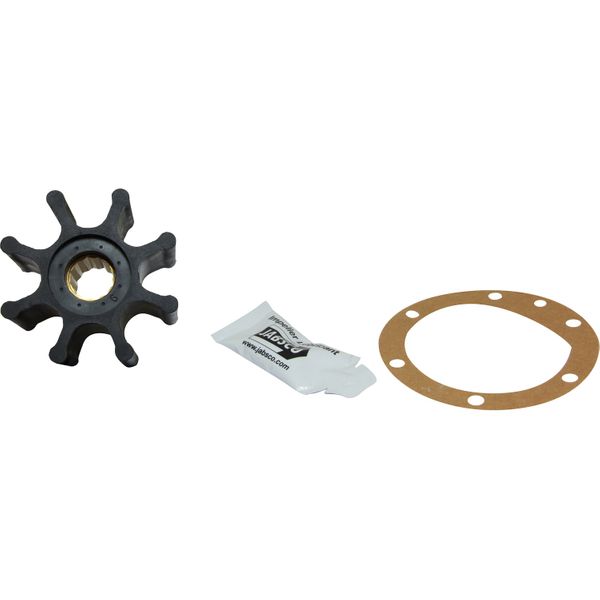

The Jabsco 920-0001-P flexible neoprene impeller has 8 impeller blades, a single flat drive and is supplied as an impeller kit, with gasket and lubricant.

The Jabsco neoprene flexible impellers are used for pumping fresh or salt water, neoprene impellers are the most commonly used material and is suitable for use where only small amounts of oil or diesel fuel are present.

The 920-0001 Jabsco impeller is made from more suitable for general water pumping duties such as engine cooling, water transfer, wash down & bilge water pumping. For applications involving light oils or diesel, use Jabsco nitrile impeller 920-0003B.

Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

You should replace your flexible pump impellers at least once every year or sooner depending on use. When the installation is correct an impeller may last for several years, but it is always advisable to stick to a schedule of preventative rather than corrective maintenance.

ITT Jabsco are one of the market leading suppliers of fluid pumping products using flexible impeller technology. The 920-0001 impeller is very popular and is often used for fluid transfer and bilge pump applications.. It can be used as an alternative to the 17937-0001 impeller, which can often be found fitted in engine cooling pumps in the 65 to 150 horse power range (depending on application). Having only 8 blades the 920-0001 is more suited to slower, low pressure applications.

The Jabsco 920-0001-P Flexible Neoprene Impeller replaces the following Impellers:

Caterpillar impeller: 7C-3286

Cummins impeller: 879194186

Jabsco impeller: 17937-0001

Johnson impeller: 09-1028B

Perkins impeller: 0460024 & 2488031

Sherwood impeller: 18200

Vetus impeller: IMP00301

Volvo Penta impellers: 877061-2 & 801277

Yanmar impeller: 127610-42200

Orbitrade impeller: 8-24005

Also used in the following marine engines:

Yanmar: 4BY150, 4BY150Z, 4BY180, 4BY180Z, 4LHA-DTE, 4LHA-DTZE, 4LHA-HTE, 4LHA-HTP, 4LHA-STE, 4LHA-STP, 4LHA-STZE, 4LH-DTE, 4LH-HTE, 4LH-STE, 4LH-TE, 6BY220, 6BY220Z, 6BY260, 6BY260Z.

This Impeller has an M profile.
