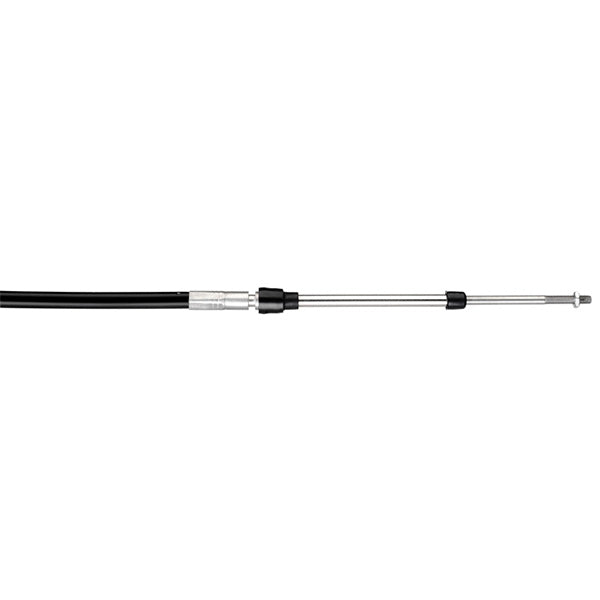

VOLVO Penta XACT Control Cable

Volvo Penta Shift + Throttle Cable - superior quality and user experience

Volvo Penta Xact Control Cables have been designed to provide the smoothest and easiest throttle/shift operation while at the same time reducing lost motion. All fittings are stainless steel and plated brass.

The all stainless steel armored strand core allows for greater flexibility and is capable of being put into tighter bends for those difficult cable routings.

It is very important to select the exact cable length, fewer bends mean better operation and durability.

Measure, in as straight a line as possible, the distance between the control mechanism and the engine/transmission connections.

Calculate a radius of 200 mm for all bends.

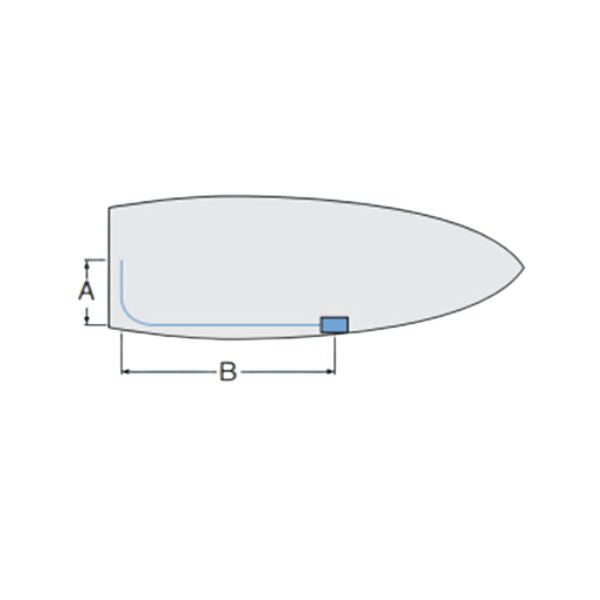

Adapt the cable as shown in the illustration L = A + B + 200 mm.

If the measurement falls between two standard cable lengths, select the longer cable.

The cables must not be cut to size.
