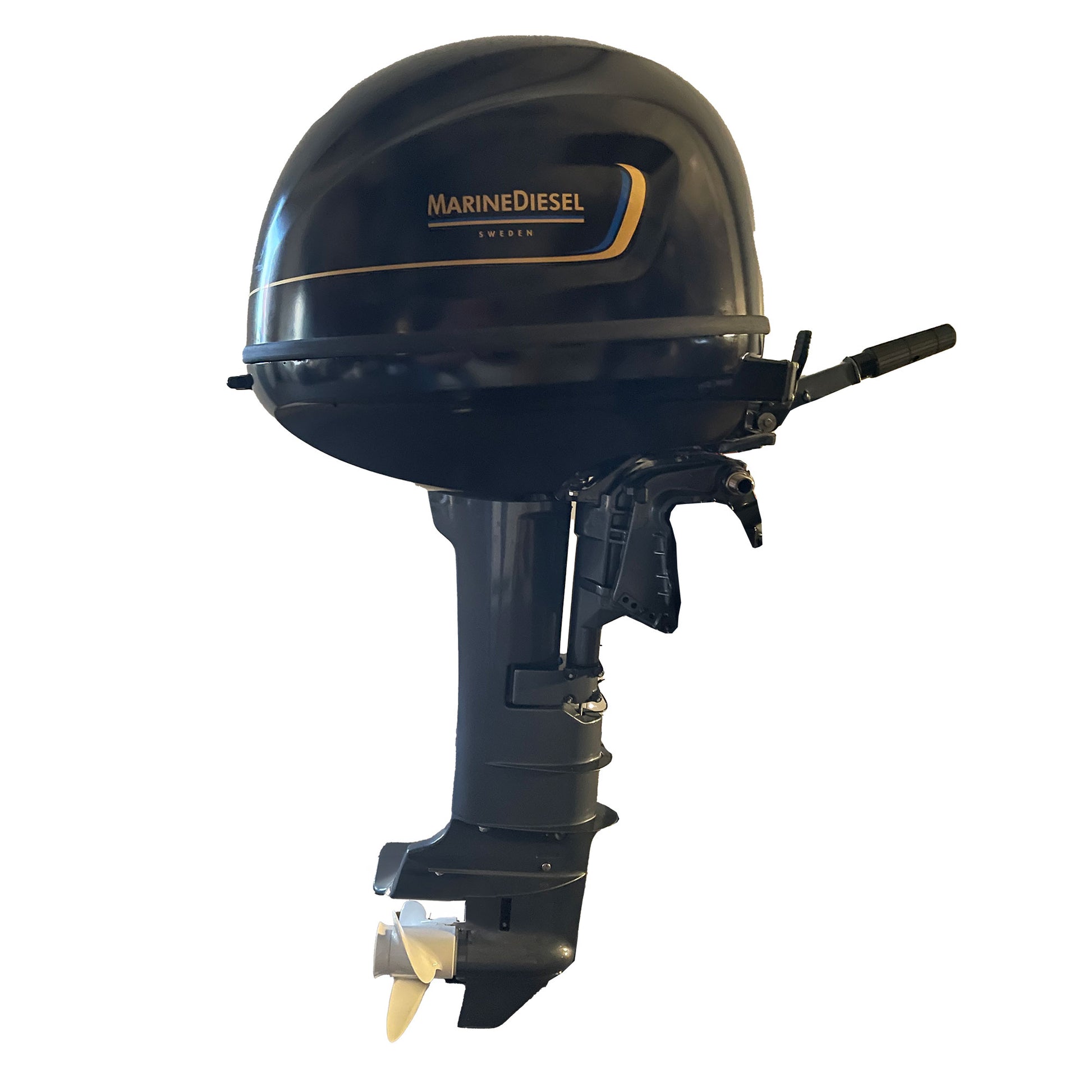

Loki 14hp Diesel Outboard

Cutting-edge, naturally aspirated 14 HP single cylinder diesel outboard engine

Designed with commercial applications in mind, the D14 is the ideal choice for demanding environments such as the oil and gas industry, aquaculture, and protected areas. Its robust construction ensures reliability in potentially hazardous settings. Available late September 2024.

[INSERT VIDEO]

Specifications

• POWER 10.4 KW / 14 HP at 3,600 RPM
• GEAR TYPE Dog Clutch
• ENGINE TYPE 1 Cyl. Monoblock
• FUEL TYPE Diesel EN 590 +
• DMA / DMX DISPLACEMENT 500 CC
• FUEL INJECTION SYSTEM Common Rail Direct Injection
• IDLE SPEED 1,000 RPM
• STARTER Electric BORE X STROKE 95 X 75 MM
• EXHAUST underwater through hub
• COOLING SYSTEM Water Cooled
• CONTROL Tiller/Remote w steering
• EMERGENCY STOP Lanyard
• STANDARD PROPELLER 12' 3 blade - built-in damper
• ENGINE OIL CAPACITY 1.6 L CF Grade 15w/40 (summer)
• DIMENSIONS 1.018 X 488 X 1.198 MM 10W/30 (winter WEIGHT (LIGHTEST VERSION) 75 kg (Dry) GEAR BOX OIL CAPACITY 0.25 L LENGTH OF SHAFT 17" and 22"
• COLD START Preheating Function
• CERTIFICATION Solas 74 Reg. III [CE], RCD

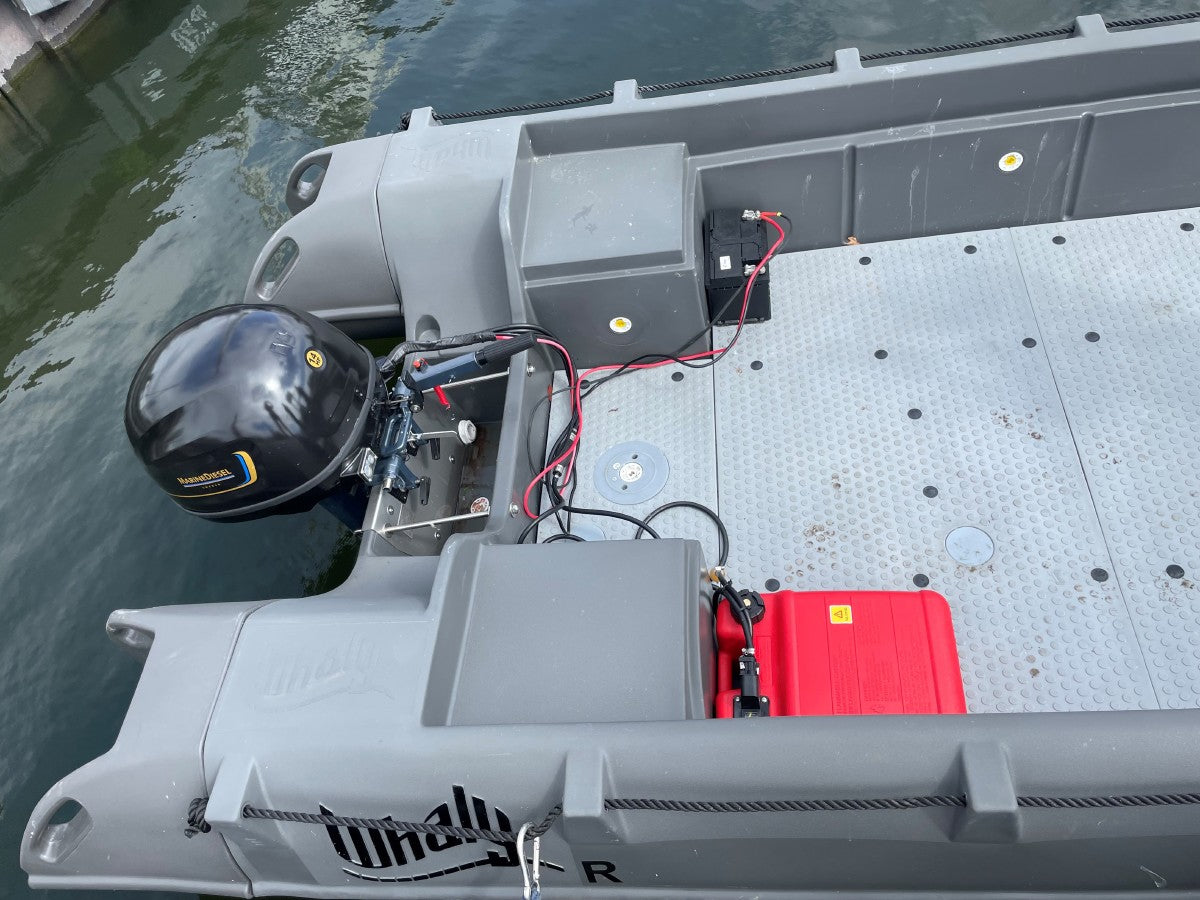

Tiller control.

Complete with tank and fuel line, battery Leads.

Available Late September. Call for further details. 01932 247427
